9 Hidden Features That Make Butler Roof Panels Last Longer

When it comes to metal roofing, longevity is everything. And that’s exactly where Butler Manufacturing sets itself apart. While most roof panels look similar from the outside, Butler’s roof systems hide a series of clever design details that quietly work behind the scenes to protect your building for decades. Here are nine lesser-known features that give Butler roof panels their industry-leading durability.

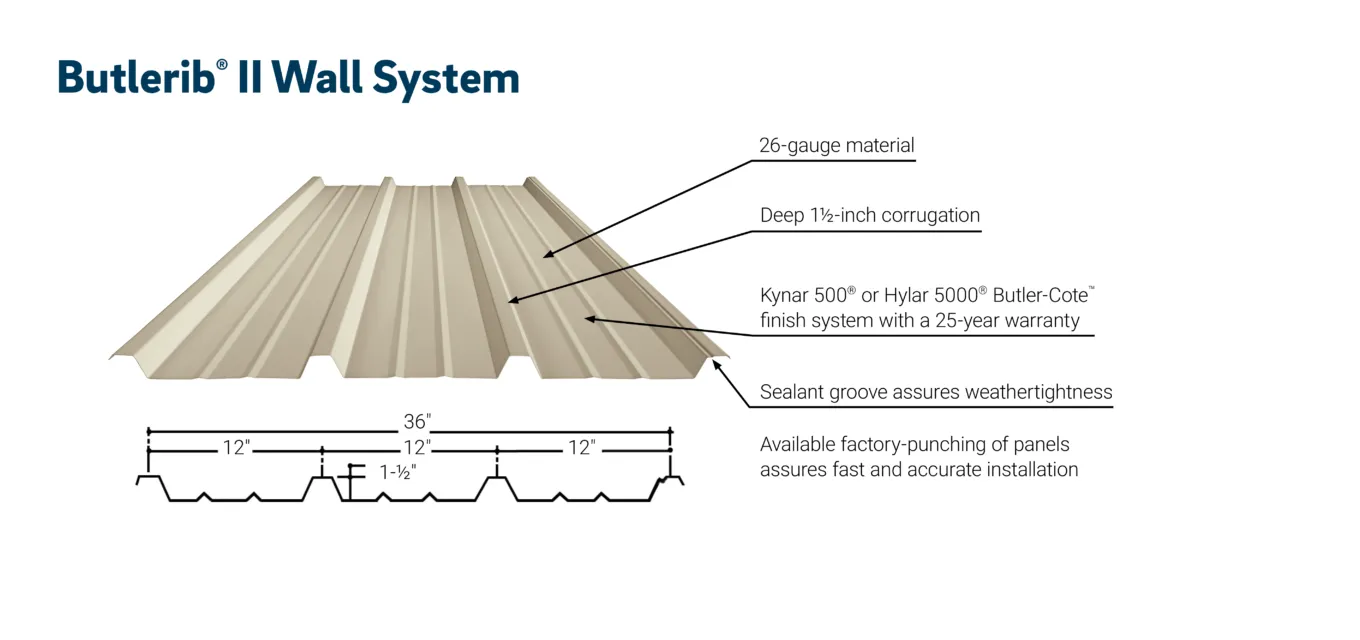

1. Sealant Grooves That Lock Out Leaks

Many roof panels rely on caulking or surface adhesives that break down over time. Butler panels, like those used in the MR-24 and Butlerib II systems, feature built-in sealant grooves that hold factory-applied butyl rubber sealant. These grooves ensure uniform compression during installation, locking out water and forming a barrier that holds up for decades—even under wind-driven rain and freeze-thaw cycles.

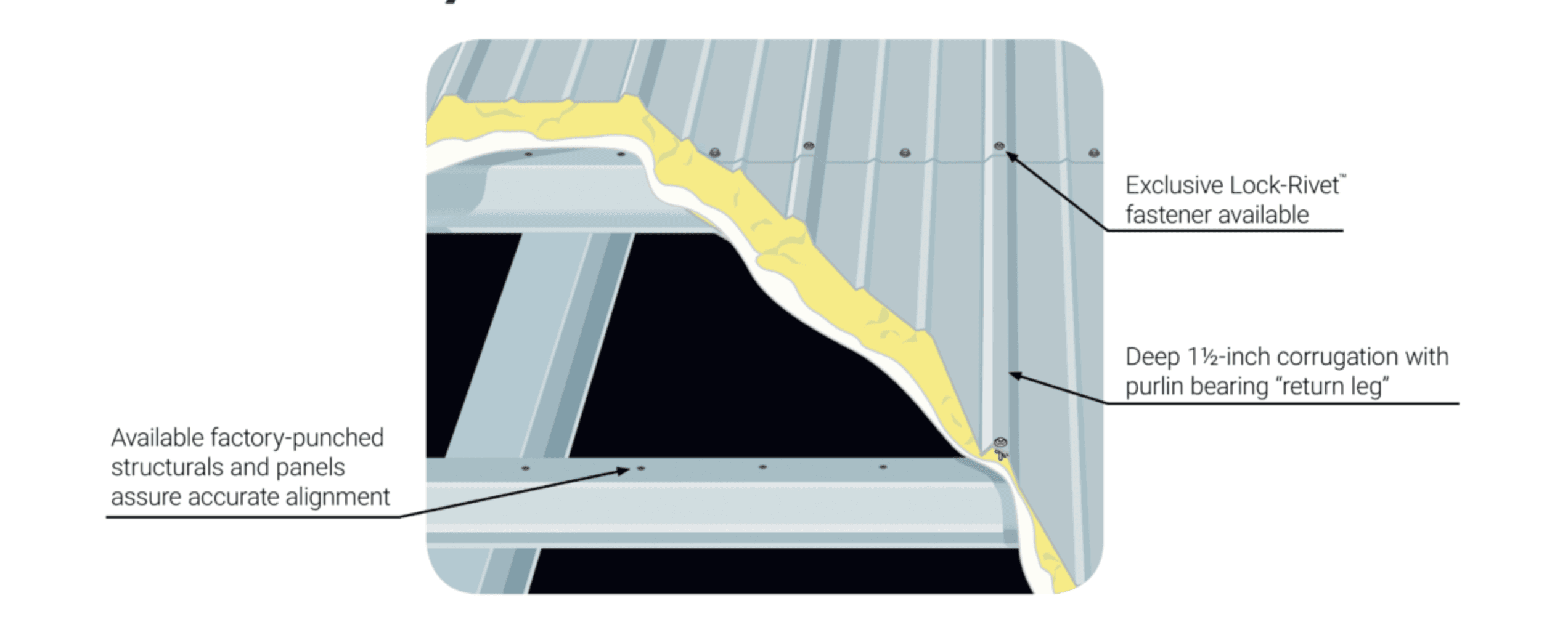

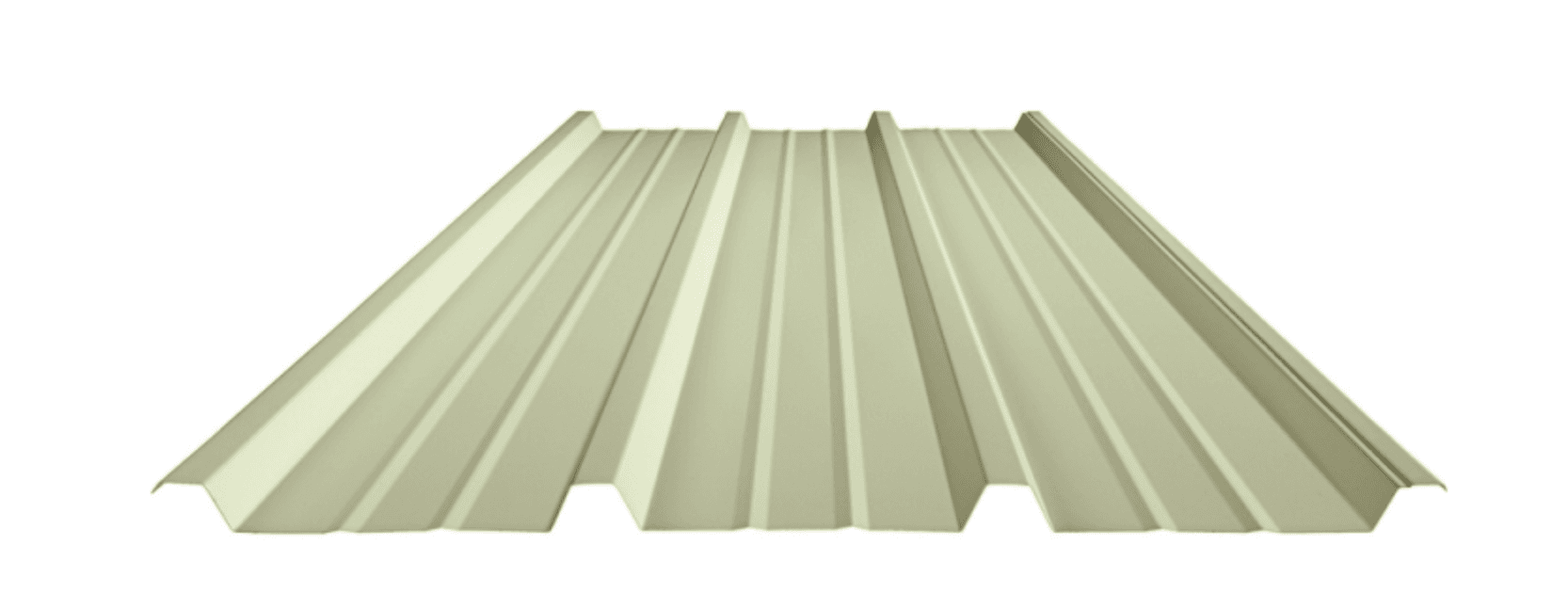

2. The Return Leg: Small Flange, Big Strength

A hidden hero of the Butlerib II roof panel is the "return leg"—a purlin-bearing flange at the panel edge. This tiny structural fold adds critical lateral support at the panel sidelaps. It prevents flexing and separation under foot traffic, wind uplift, and snow loads. Without it, typical fastened panels are more vulnerable to panel distortion over time.

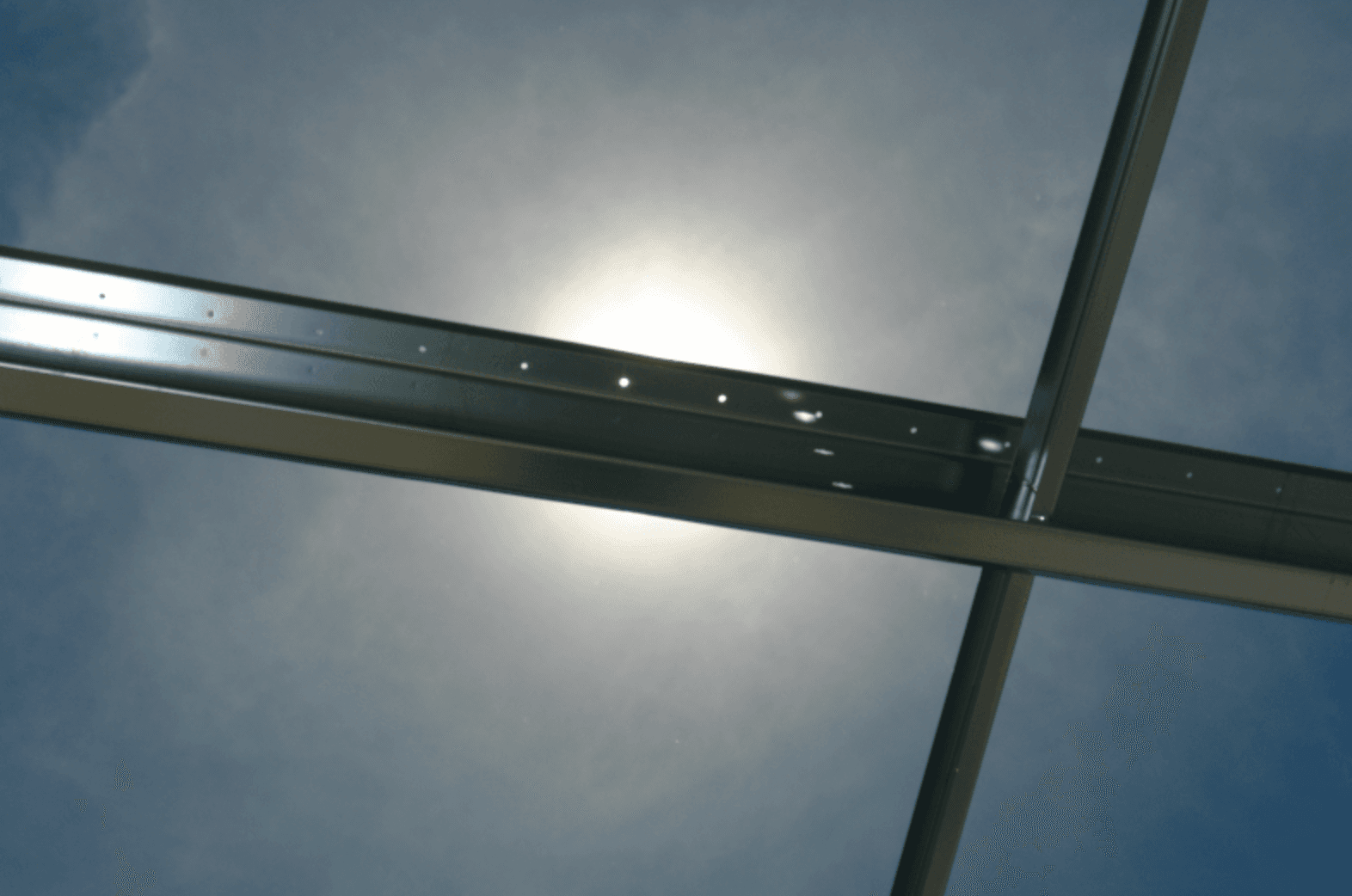

3. Factory-Punched Precision for Perfect Alignment

Many roofing systems are drilled on-site, leading to inconsistencies. Butler panels and structural members are factory-punched, ensuring exact hole placement and consistent alignment during installation. This reduces installation errors, increases weathertightness, and allows roof systems to expand and contract smoothly.

4. Staggered Panel Splices

On larger buildings, panel splices are unavoidable. But Butler does it smarter. Instead of lining up all splices across the roof—which creates weak points—Butler staggers them. This avoids the problematic four-corner splice condition and results in a much stronger, longer-lasting seam that resists leaks and structural stress.

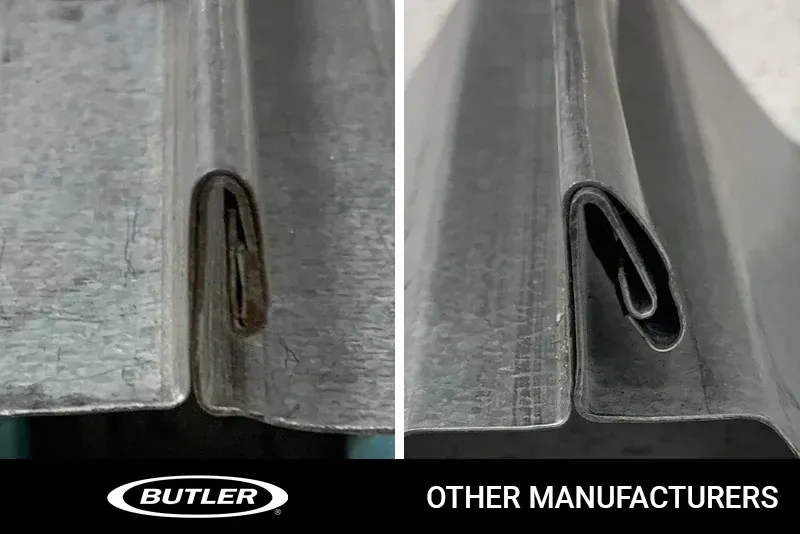

5. The 360° Pittsburgh Double-Lock Seam

Most standing-seam roofs are crimped or snapped together. Not MR-24. Butler’s signature seam is mechanically field-seamed using a portable Roof Runner® machine to create a 360° Pittsburgh double-lock seam. It’s the same sealing method used in soda cans—watertight, pressure-resistant, and incredibly durable.

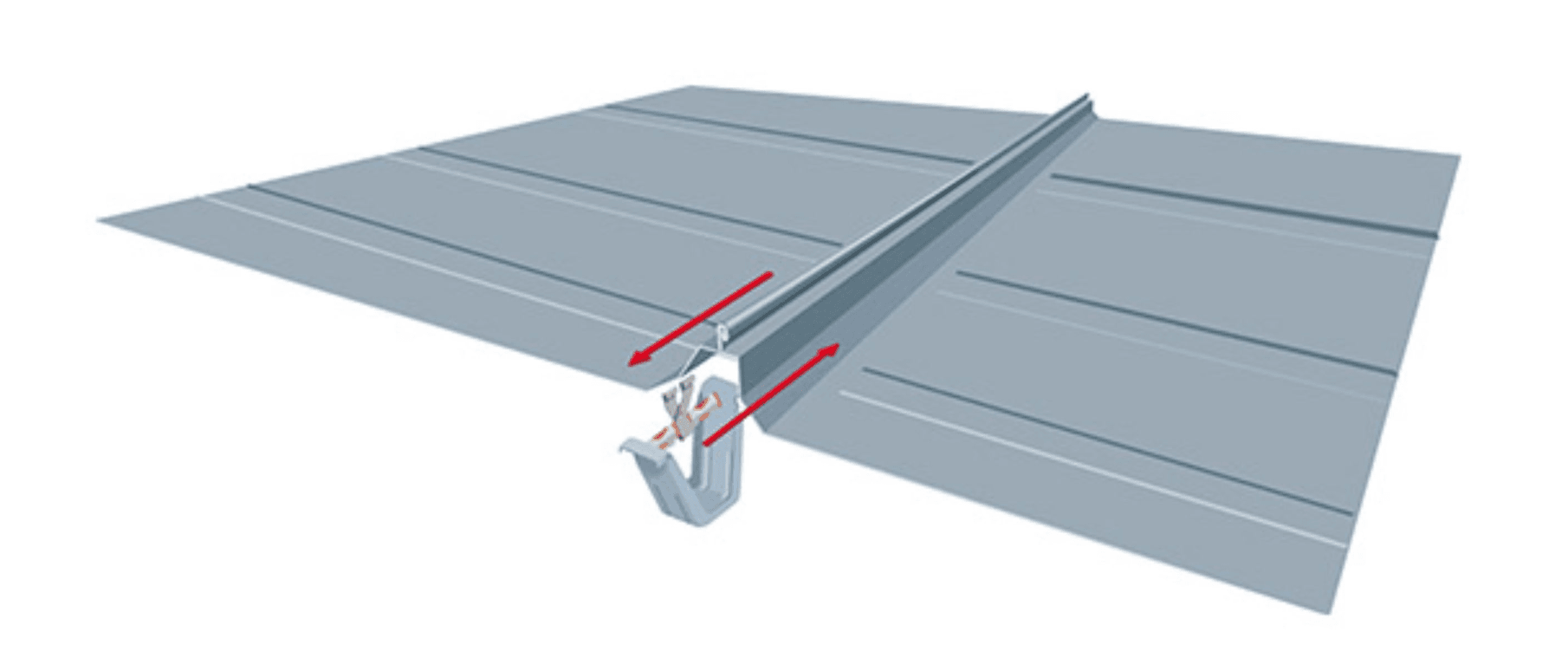

6. Truly Floating Roof Clips

Temperature swings cause metal to expand and contract. Butler’s MR-24 Roof Clip is engineered to allow panels to move up to 2.5 inches without stress on the fasteners or seams. The clip's concave base and stainless-steel tab slide smoothly with the panel, preventing wear, tear, and eventual leaks. Few systems allow for this much thermal movement without damage.

7. Cross Flutes for Panel Memory

MR-24 panels include small cross flutes along the flat of the panel. These stiffen the panel and help it retain its shape after high wind uplift or human traffic. When panels are distorted by pressure, the flutes act like memory ribs, guiding them back into place and maintaining surface integrity.

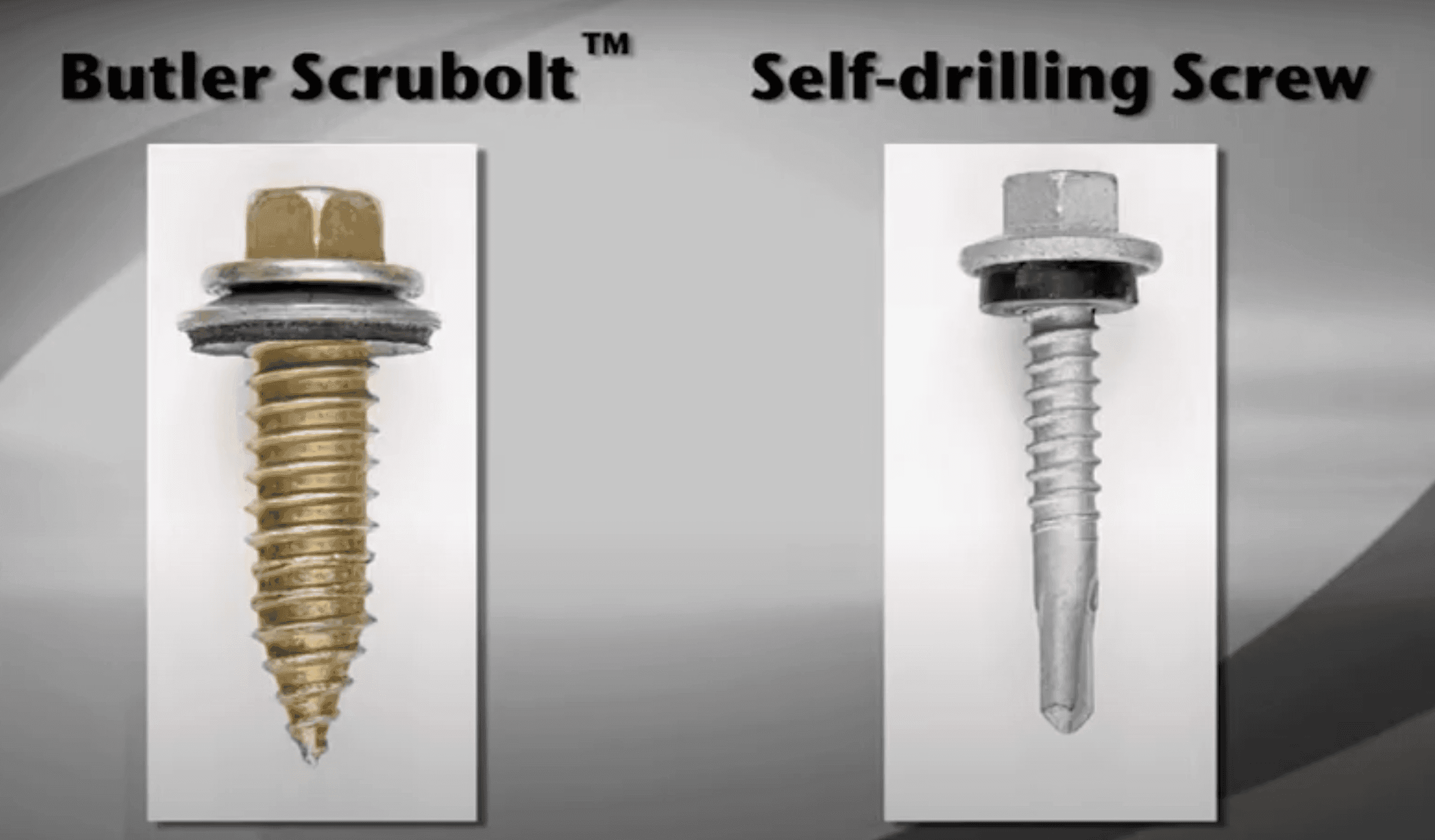

8. Lock-Rivet and Scrubolt Fasteners

Butler’s proprietary Lock-Rivet™ and Scrubolt™ fasteners outperform standard self-drillers. The Lock-Rivet fastener doesn’t loosen over time, resisting vibrations and thermal movement. The Scrubolt—used in Butlerib II systems—offers twice the pull-out strength of common fasteners. More secure connections mean fewer maintenance issues.

9. Designed-In Thermal Movement

Beyond the clips, Butler designs its entire roof system—from ridge assemblies to gable trims—to allow for thermal expansion and contraction. Seamed-in gable trims, floating ridge caps, and flexible curbs all move with the roof instead of fighting against it. This holistic approach prevents common failure points found in rigid systems.

Surprising Bonus: Tested Like No Other

Butler operates its own guarded hot box testing lab to measure real-world insulation and thermal performance. Their sealants even include tiny nylon spacer beads to ensure the sealant bead stays consistent during clamping—a small detail that makes a big difference.

Butler is Always Innovating

What makes Butler roofs last so long isn’t one big innovation—it’s dozens of little ones working in harmony. If you're choosing a roof for long-term value, low maintenance, and unmatched protection, these hidden features make Butler the obvious choice.

Need parts to upgrade or repair your Butler roof system? Reach out! Butler MFG Parts has every component you need. Genuine Butler Manufacturing parts, ready to ship.
