Metal Roof Noise: How Butler Systems Keep Buildings Quiet

When people think of metal roofs, they often picture the loud patter of rain or the booming pop of thermal expansion. In older or poorly designed systems, those noises are very real. But with Butler Manufacturing® roofs, sound control is built into the system from the start. Butler combines panel engineering, structural detailing, and advanced insulation systems to deliver buildings that stay quiet inside—even during heavy rain, hail, or high winds.

This guide breaks down how Butler roof systems minimize noise, why they outperform conventional metal roofing, and what added benefits owners gain in comfort, energy efficiency, and longevity.

The Problem with Noisy Metal Roofs

Metal is an excellent roofing material: durable, long-lasting, and sustainable. But untreated, it has one drawback—it’s a great conductor of sound. When rain, hail, or wind hits a bare panel, it vibrates like a drum. Common issues with conventional metal roofs include:

Rain and hail noise reverberating through thin panels.
Wind vibrations that cause panels to hum or rattle.
Thermal popping when sun-heated panels expand but can’t move freely.
Loose fasteners over time that let panels buzz or chatter in gusts.

For buildings like offices, schools, or warehouses, these sounds disrupt comfort and productivity. Butler solves these problems through system-level engineering.

Butler Roof Systems and Acoustic Performance

MR-24® Standing Seam – Stiff, Silent, and Durable

The MR-24® roof system is Butler’s flagship standing-seam design. Installed on more than 3 billion square feet since 1969, it remains the most specified metal roof in the industry. Its noise control features include:

Cross-fluted panels: Minor ribs every 6" stiffen the steel and break up wind vibrations, reducing the chance of humming or drumming.
Floating clips: Roof clips allow up to 2.5" of thermal movement. Panels expand and contract silently instead of popping or pulling at fasteners.
360° Pittsburgh double-lock seam: Creates a tight, monolithic surface that eliminates gaps where panels could rattle.
Staggered end laps: Prevent four-corner intersections that are difficult to seal and prone to movement noise.

The MR-24 essentially acts as a single steel membrane over the building, with no loose edges or exposed screws. That rigidity translates to quieter interiors.

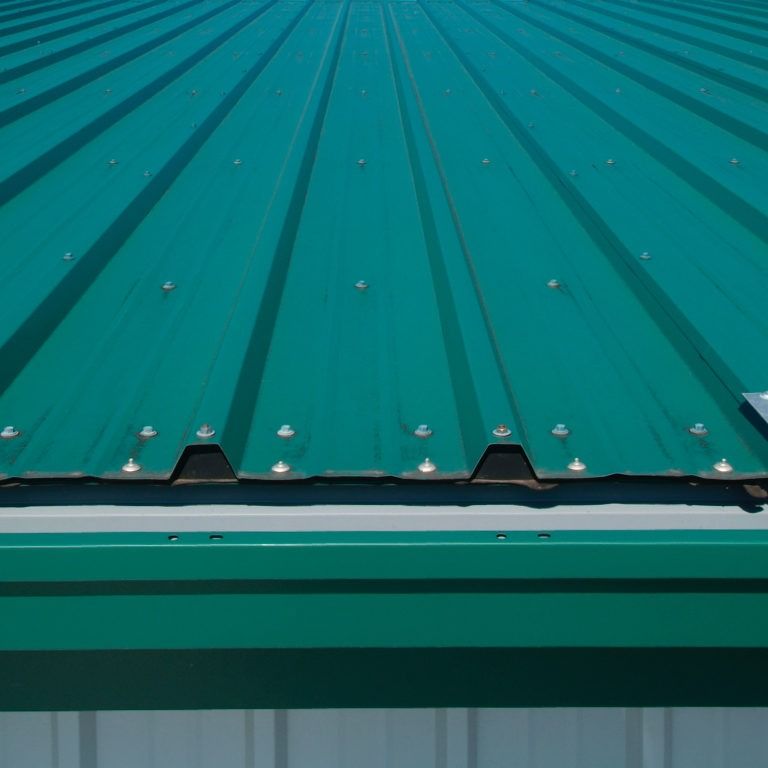

Butlerib® II – Affordable, Through-Fastened, and Quiet by Design

Most screw-down metal roofs are notorious for noise. Butler’s Butlerib® II is the exception. It remains economical while outperforming standard “R-panels” in sound control.

1½" deep corrugations give the panel strength and stiffness, limiting vibration.
Slotted fastener holes allow slight movement, reducing creaks and thermal pops.
Return-leg sidelaps lock panels together tightly, eliminating metal-on-metal chatter.
High-strength Scrubolt™ fasteners keep panels tight for decades without loosening and rattling.

Combined with proper insulation, Butlerib II provides a roof that is both cost-effective and surprisingly quiet—ideal for commercial and agricultural applications.

VSR II™ Architectural Roof – Sleek and Silent

The VSR II™ roof system blends architectural aesthetics with acoustic engineering.

Concealed sliding clips permit panel movement without noise.
2" tall seams with longitudinal flutes stiffen the panel, preventing “oil canning” and vibration.
Heavier gauges (24 or 22) reduce resonance compared to thinner competitors.
Factory-applied seam sealant and up to 25-year weathertight warranties ensure long-term performance without loose, noisy joints.

For schools, offices, or civic buildings, VSR II offers both the look of a high-end standing seam roof and the quiet of a solid building envelope.

Insulation Systems: The Key to Noise Reduction

Even the best roof panel benefits from insulation. Butler’s ThermaLiner™ and TBS™ insulation systems add mass, absorb sound, and block noise transmission into the building.

ThermaLiner™ Insulation System

ThermaLiner adds an interior steel liner panel below the roof purlins. The space between the liner and the outer roof is filled with multiple layers of fiberglass insulation, achieving R-values near 40.

The thickness absorbs impact noise from rain or hail.
The liner panel acts as a sound barrier, keeping noise out of occupied spaces.
The liner doubles as a structural diaphragm, stiffening the roof and reducing vibration.
Inside, it provides a bright, clean finished ceiling that protects the insulation.

The effect is much like a double-pane window: two solid layers separated by insulation, dramatically reducing sound transfer.

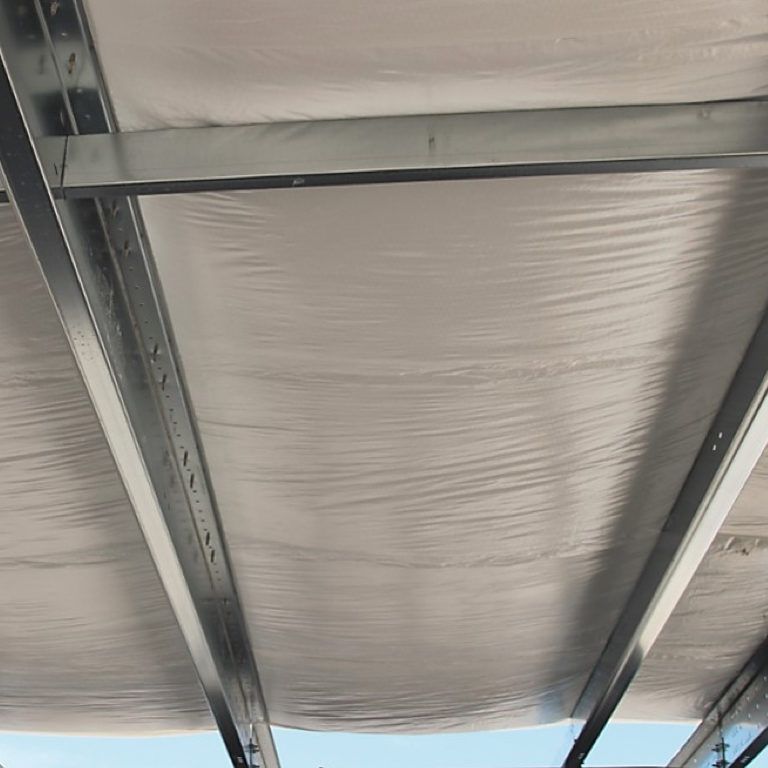

TBS™ Insulation System

The Thermal Barrier System (TBS) is installed above the purlins, with insulation kept uncompressed by spacers. This allows continuous insulation blankets up to R-34.4 in value.

Uncompressed insulation absorbs more sound.
The system maintains vapor retarder integrity, preventing holes for sound leaks.
Works with both Z-purlins and Truss PurlinXT™ structures, and is compatible with Butler’s Sky-Web® safety net systems.

Together, ThermaLiner and TBS give Butler buildings acoustic performance unmatched by conventional single-layer systems.

Structural Features That Quiet the Roof

Beyond panels and insulation, Butler’s engineering reduces building noise in ways competitors often overlook:

Diaphragm action: Liner panels act as structural bracing, stiffening the roof and preventing resonance.
Factory-punched components: Precise alignment eliminates stress points where panels might squeak or creak.
Specialized clips and fasteners: Designed to hold tight but flex silently with movement.

These details ensure Butler roofs stay quiet not just at installation, but decades later.

Comparison: Butler vs. Conventional Metal Roofs

Category	Butler Roof Systems (MR-24®, Butlerib® II, VSR II™ + Insulation)	Conventional Metal Roofs
Panel Design	Cross-fluted or stiffened panels reduce vibration; heavy 22–24 ga steel minimizes resonance.	Flat, thinner panels (26–29 ga) prone to humming or drumming in wind and rain.
Thermal Movement	Floating clips (MR-24, VSR II) or slotted fasteners (Butlerib II) prevent popping noises.	Fixed fasteners restrain panels, leading to loud thermal pops and eventual loosening.
Insulation	Multi-layer systems (ThermaLiner, TBS) with up to R-40 absorb sound and block transmission.	Single compressed fiberglass layer; poor absorption, thin vinyl facings transmit noise.
Structural Rigidity	Liner panels double as diaphragms, reducing vibration; factory punching ensures tight fits.	Less precise assembly; bracing can rattle; panels more prone to movement noise.
Interior Comfort	Quiet even during storms; interiors comparable to traditional roofing.	Loud during rain, hail, and wind; occupants often report disruptive noise.

More Than Quiet: Added Owner Benefits

Butler’s approach delivers more than just acoustic comfort:

Energy savings: High R-value insulation cuts heating and cooling costs.
Sustainability: Steel panels are recyclable; many finishes meet Energy Star® and CRRC “cool roof” standards.
Aesthetics: Finished interiors with ThermaLiner; sleek exterior profiles like VSR II.
Warranties: Up to 25-year weathertightness and finish warranties provide peace of mind.
Proven longevity: MR-24 roofs have exceeded 50 years of service life with minimal maintenance.

Wrapping Up

Metal roofs don’t have to be noisy. With Butler’s MR-24®, Butlerib® II, and VSR II™ systems—paired with insulation like ThermaLiner™ or TBS™—buildings achieve the durability of steel without the disruptive sounds people expect from metal.

For building owners, contractors, and architects, that means quieter interiors, lower energy costs, and long-term reliability. Compared to conventional metal roofs, Butler delivers a clear acoustic and performance advantage.

When you choose Butler, you’re not just getting a roof—you’re getting a complete system designed to keep your building quiet, efficient, and comfortable for decades.
