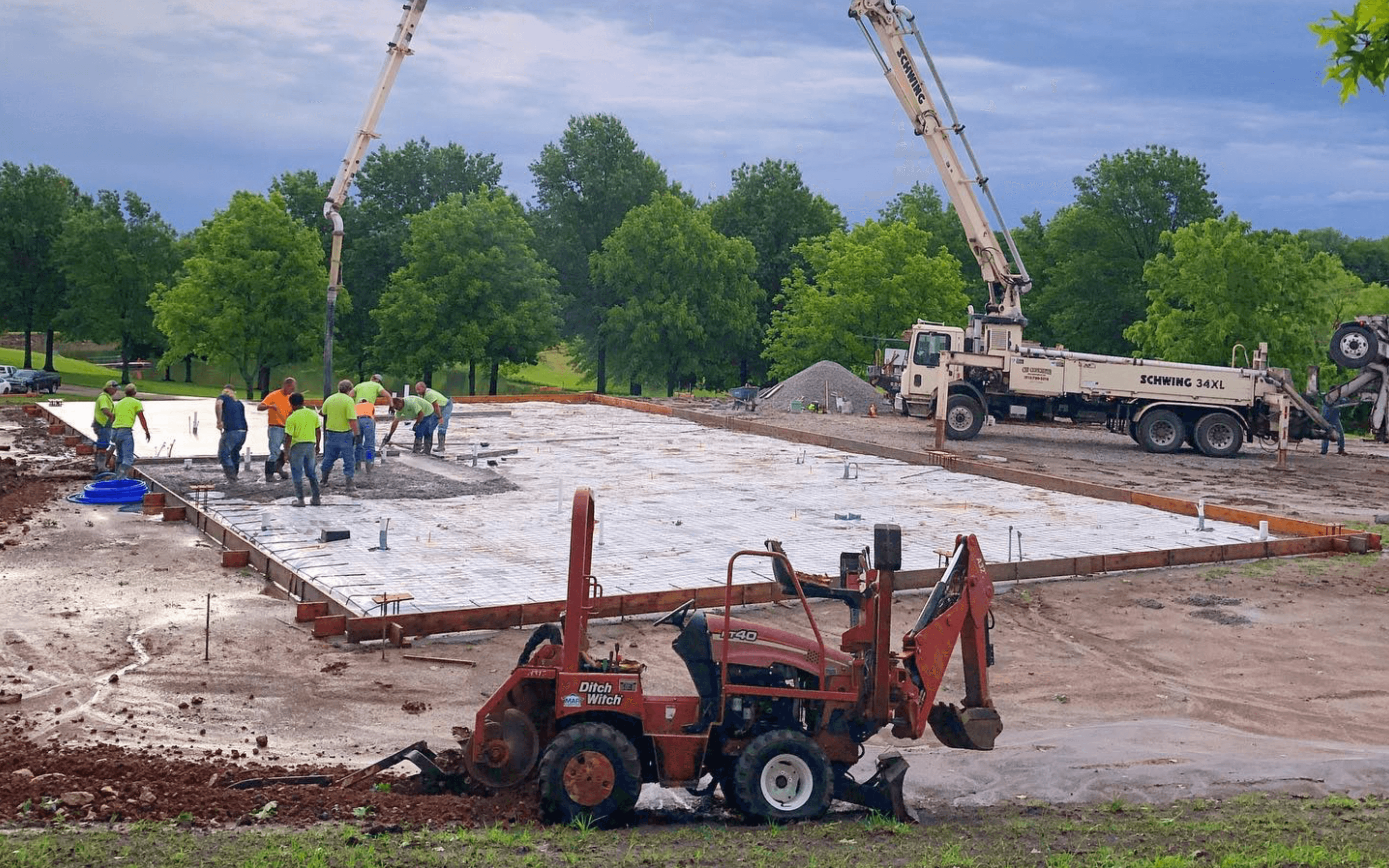

How Metal Building Foundations Affect Structural Performance

A solid structure starts below the surface.
When people talk about metal buildings, they usually focus on things like roof systems, wall panels, or insulation. But none of those features can perform as intended if the building’s foundation isn’t done right. Foundations don’t just hold the building up—they control alignment, strength, and how well every part of the structure fits and functions.
In this article, we’ll explain exactly how foundations affect the structural performance of metal buildings—and why even small mistakes in this area can lead to big problems.

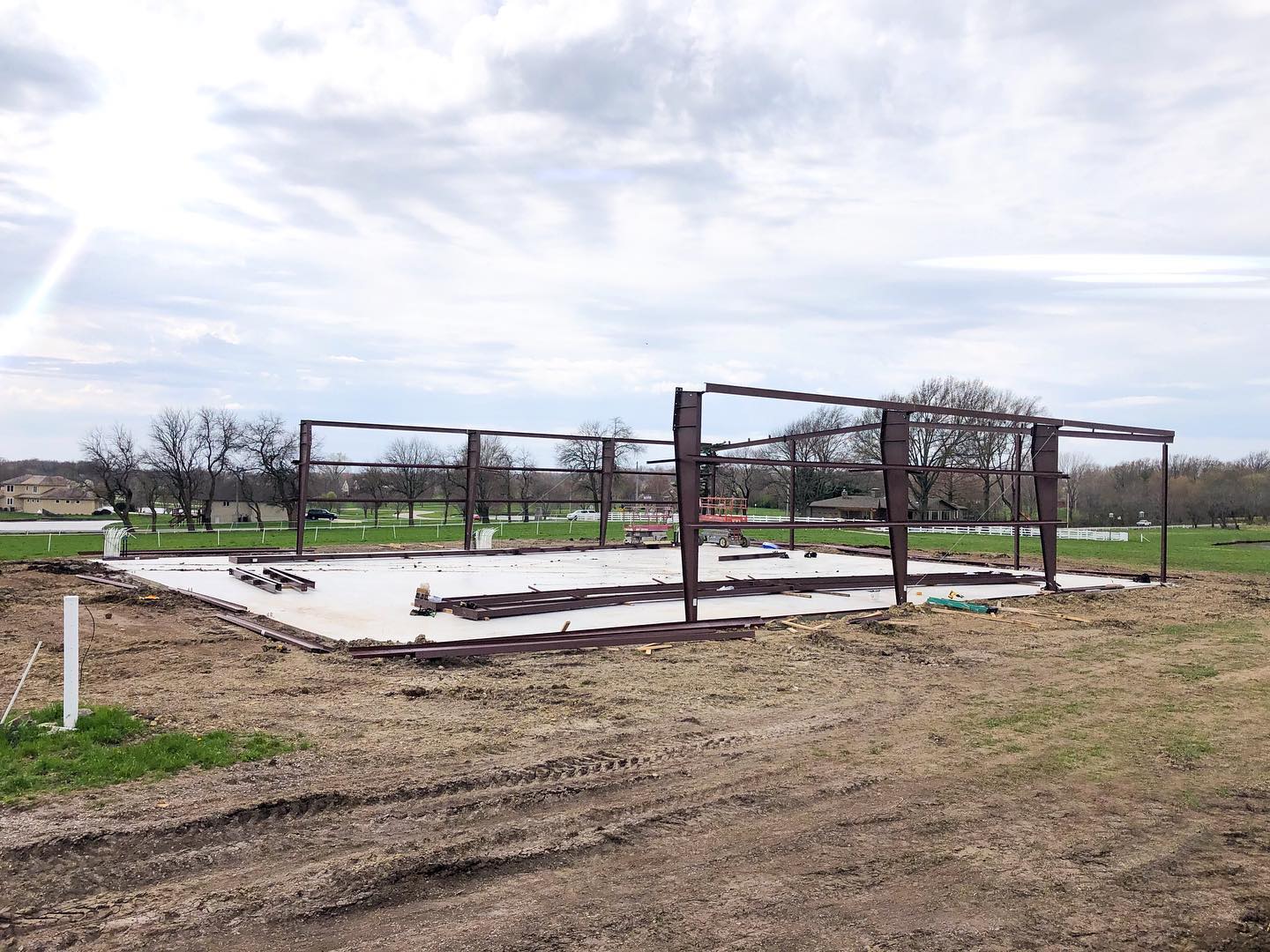

What Does a Metal Building Foundation Do?

At its core, a foundation transfers loads from the steel structure down into the soil. These loads include:
- Dead loads (weight of the building materials)
- Live loads (people, equipment, snow, wind, etc.)
- Uplift forces (caused by wind trying to lift the roof off)
- Lateral forces (like seismic or wind pushing the building sideways)
But more than just supporting weight, the foundation also:
- Holds anchor rods that connect to steel columns
- Sets the exact elevation of the building so floors are level
- Maintains alignment so framing, panels, and roof systems install correctly
A small error in the foundation can throw off the entire structure.

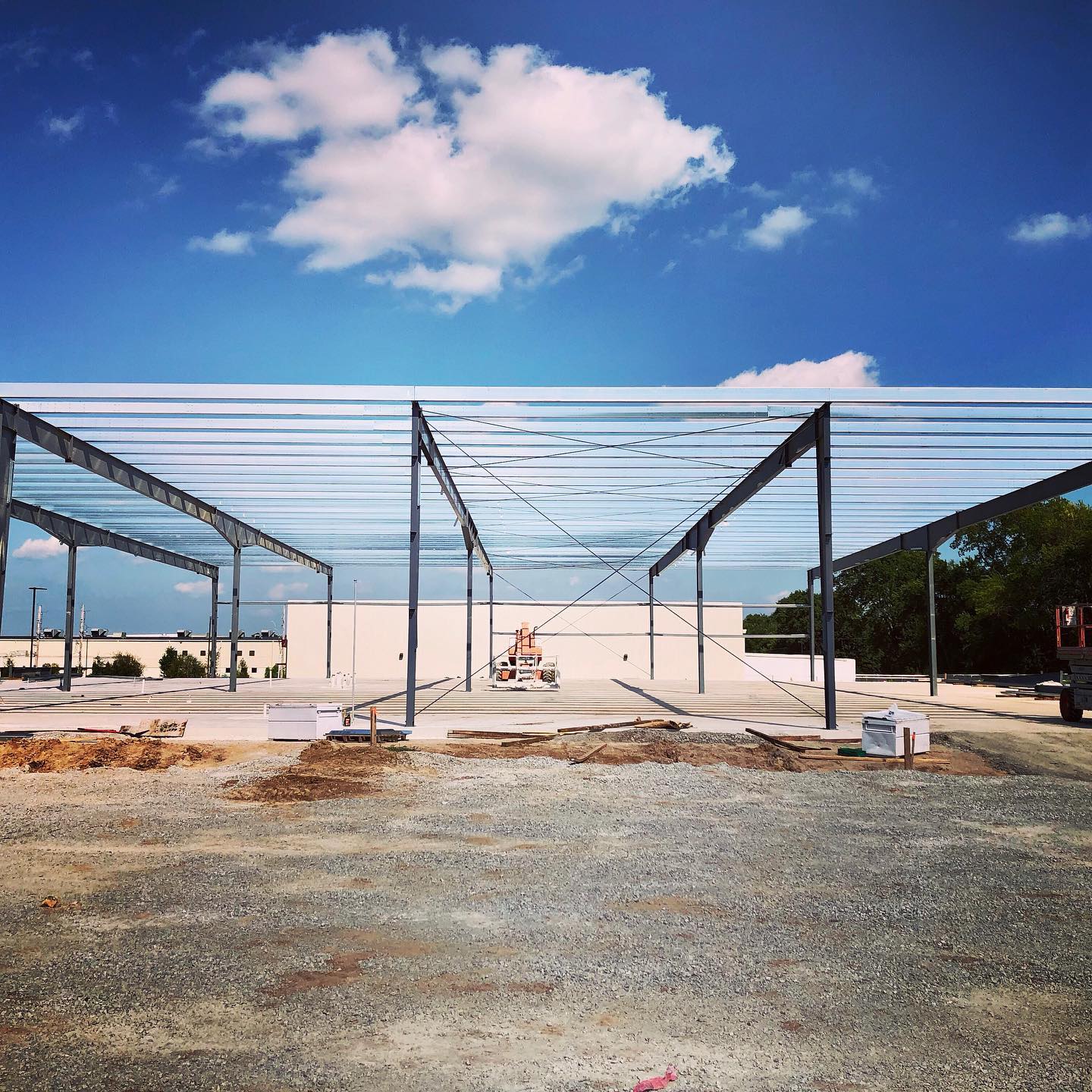

How Metal Building Foundations Differ from Conventional Construction

Metal buildings—especially pre-engineered systems like Butler—have unique foundation requirements that set them apart from traditional construction.
Here’s why:
- Point Loads, Not Spread Loads:
Conventional buildings (like wood or concrete block) often distribute weight along continuous footings or walls. Metal buildings concentrate loads at specific points—usually steel column bases. These concentrated “point loads” mean foundation pads must be designed precisely for both bearing and uplift. - Anchor Rod Precision Is Critical:
In conventional builds, you can adjust framing on site. In metal buildings, steel columns are factory-punched. If anchor rods aren’t exactly placed—often within ±1/8 inch—the columns won’t fit without field modification, weakening the structure. - Elevation & Squareness Requirements:
Conventional wall systems allow for minor adjustment. Metal systems (especially integrated ones like Butler's) depend on square, level foundations so panel seams, roof slopes, and structural alignments come together without rework. - Load Paths Are Pre-Engineered:
PEMBs transfer forces very efficiently—but that efficiency depends on the foundation receiving and resisting those forces exactly as designed. Mistakes can’t be “absorbed” elsewhere like in more flexible, stick-built structures.
How Foundation Design and Installation Affect Structural Performance
🔩 1. Anchor Rod Placement
Anchor rods are what your steel columns bolt to—and they need to be dead-on accurate. According to Butler’s erection guide, anchor rods must be placed within ±1/8 inch of their specified location.
If they’re too far off:
- Holes in the base plate won’t line up
- Crews may need to field-drill, slot, or bend rods—all of which weaken the connection
- It can cause permanent misalignment of the columns
Butler provides anchor bolt templates to help avoid this. Still, placement is the contractor’s responsibility, and mistakes here ripple throughout the rest of the build.
📏 2. Elevation Errors
The height of each column base must match the building’s design, or the structure won’t sit level. Even a ¼" to ½" height difference can lead to:
- Tilted frames
- Misaligned purlins and girts
- Roof panel slope inconsistencies
- Seams not lining up (especially in MR-24® roofs)
The Butler erection guide allows only ±1/8 inch to ±1 inch of elevation variance depending on the component. Anything more could require shimming—which adds cost and complexity.
📐 3. Out-of-Square Foundations
If the foundation isn’t square—meaning the corners aren’t true 90° angles—your roof and wall systems won’t align properly. That can cause:
- Wall panels to “fight” the framing
- Roof panels to miss their clips or seams to stress during thermal movement
- Problems finishing trim, windows, or doors
Metal buildings like Butler’s are pre-engineered to tight tolerances. That’s part of what makes them efficient—but it also means the foundation has to be precise, or else the building won’t go up as planned.
Foundation Issue | What Happens | Impact on Structure |
Anchor rods misaligned | Base plate holes don’t match | Weak connections, field rework, misaligned frames |
Uneven foundation elevations | Columns sit at different heights | Uneven roof slope, poor panel fit, seam stress in standing seams |
Out-of-square layout | Corners not true 90° | Wall and roof panels fight geometry, trim misfit, door misalignment |
Improper or excessive shimming | Over-shimmed base plates introduce instability | Unintended frame movement, twisting, long-term stress points |
Incorrect reaction loads used | Foundation underdesigned for actual structural forces | Cracking, settling, uplift issues, total failure in severe cases |
Real-World Consequences of Foundation Mistakes
- Roof Leaks: An out-of-level foundation can cause ponding water or gaps in roof seams.
- Misaligned Doors: If the frame is out-of-square, overhead doors might not close properly.
- Wall Bowing: Uneven foundation heights can cause girts to deflect and panels to bulge.
- Structural Strain: Poor anchorage can transfer unintended forces into columns or bracing.
How Butler Helps Minimize Foundation-Related Risks
- They provide accurate reaction loads in their design documents so the foundation can be sized correctly.
- Anchor rod templates are supplied to keep placements within tolerance.
- Butler factory-punched framing systems only work when everything aligns—making deviations easy to spot early.
- Butler roof systems like MR-24® rely on precision column spacing and elevation to perform their best. That’s why foundation accuracy is so important.
Best Practices for Metal Building Foundations
If you want your metal building to perform well for the long haul, here’s what to do:
- Engage a structural engineer early
Use the reaction load data provided by Butler to properly design the foundation for uplift, shear, and bearing. - Use anchor bolt templates
Never guess. Templates ensure bolt spacing matches the base plates—no “field fixes” needed. - Survey and check foundation before steel arrives
Use a transit or laser level to confirm elevations, square the corners, and measure diagonals. - Minimize shimming
If you have to shim base plates more than a small amount, it’s often better to grind down or re-pour than to stack washers. - Confirm tolerances match erection guide
For Butler systems, stick to the published limits:- Anchor rod spacing: ±1/8"
- Elevation: ±1/8" to ±1" depending on detail
- Squareness: within ¼" across diagonals
A Strong Building Starts with a Solid Foundation
You can use the highest-performing roof system, the best insulation, and the strongest steel—but if the foundation isn’t square, level, and precise, everything above it suffers.
Metal buildings—especially integrated systems like Butler’s—are engineered to tight tolerances for a reason. They go up faster, perform better, and last longer when the foundation is right.
If you're dealing with retrofit issues, panel misalignment, or need help matching replacement parts to existing conditions, contact us at Butler MFG Parts. We’ll help ensure the Butler components you order match the conditions you're working with—starting from the ground up.
